Grinder

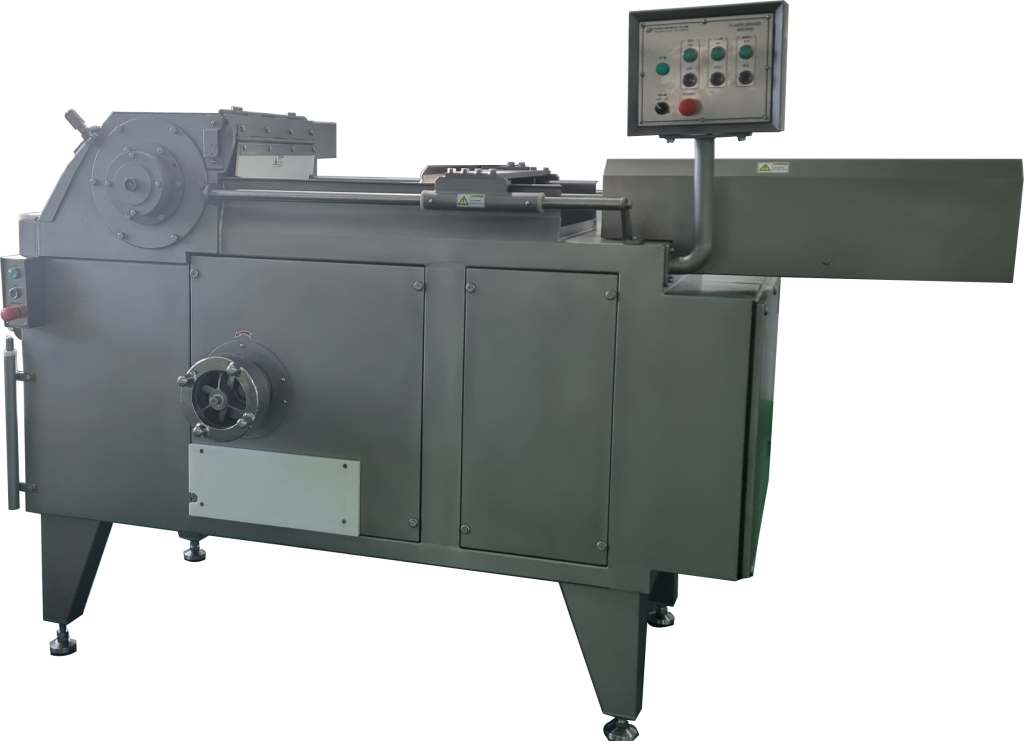

Flake&Grinder

Feature

  • Combined with Flaker and grinder
  • Perfect quality when flaked with up to -2 °C
  • Option : 2 type of speed of worm for fresh meat & frozen meat

Techinical Specification

MODEL DFG-450 DFG-450S
MEAT TYPE
Frozen Only
Frozen & Fresh
Capacity (Kg/Hr)
800 ~ 1200Kg /Hr
800 ~ 1200Kg /Hr
Power
26Kw
28Kw
Dimension
W1290 X L2565 X H1250
W1250 X L3100 X H1750

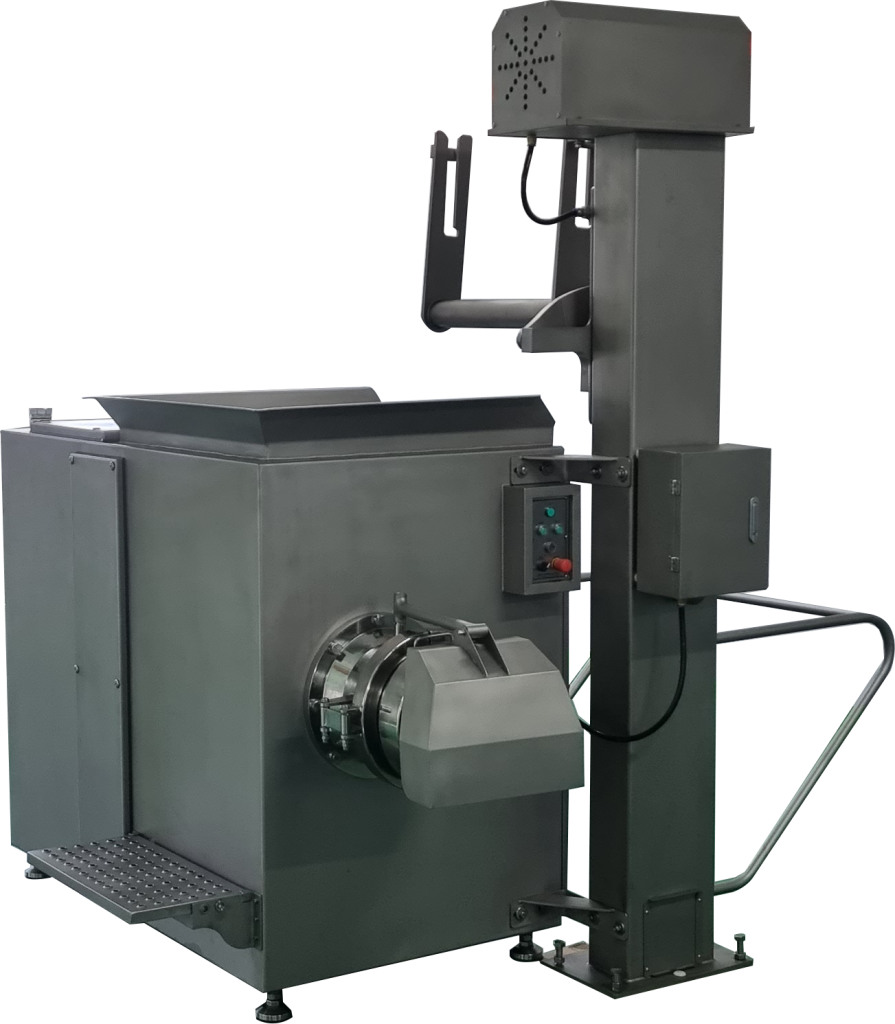

Frozen Block Grinder

Feature

  • Guarantee perfect quality when chopping frozen block up to -15 °C
  • Included lifter
  •

Technical Specification

MODEL DFG-300
Hole plate
300pi
POWER
55Kw(75HP)
Dimension
W1100XL2330X1486H

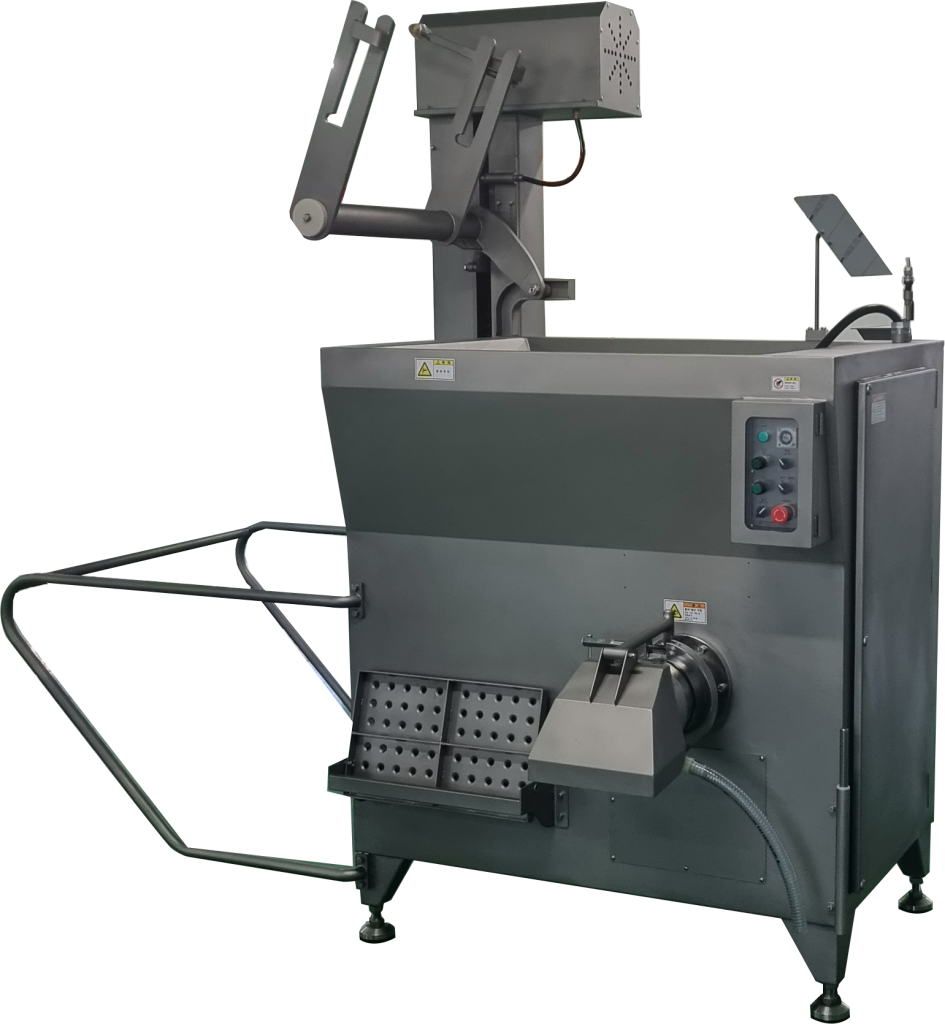

Fresh & Frozen Grinder

Feature

  • Adaptable for flakered frozen meat & fresh meat up to -15 °C
  • 2 type of speed of worm for fresh meat & frozen meat
  • Pneumatically driven Seperating system

Process

Technical Specification

MODEL DCP-114F DCP-170F DCP-200F
Hole plate
114pi
170pi
200pi
Power
8.3Kw
33.8Kw
58.8Kw
Dimension
W1134X1019LXH1230
W1414XL1770XH1800
W1886XL1770XH1800

Comparable Machine

Mixer

  • Double axis homogeneously mixes different ingredients
  • Water-resistant design
  • Pneumatically discharge tilting for easily transferring filling to wagon or mono-pump
  • Option of Vacuum type
