Cutter – Feel the best productivity of dumplings

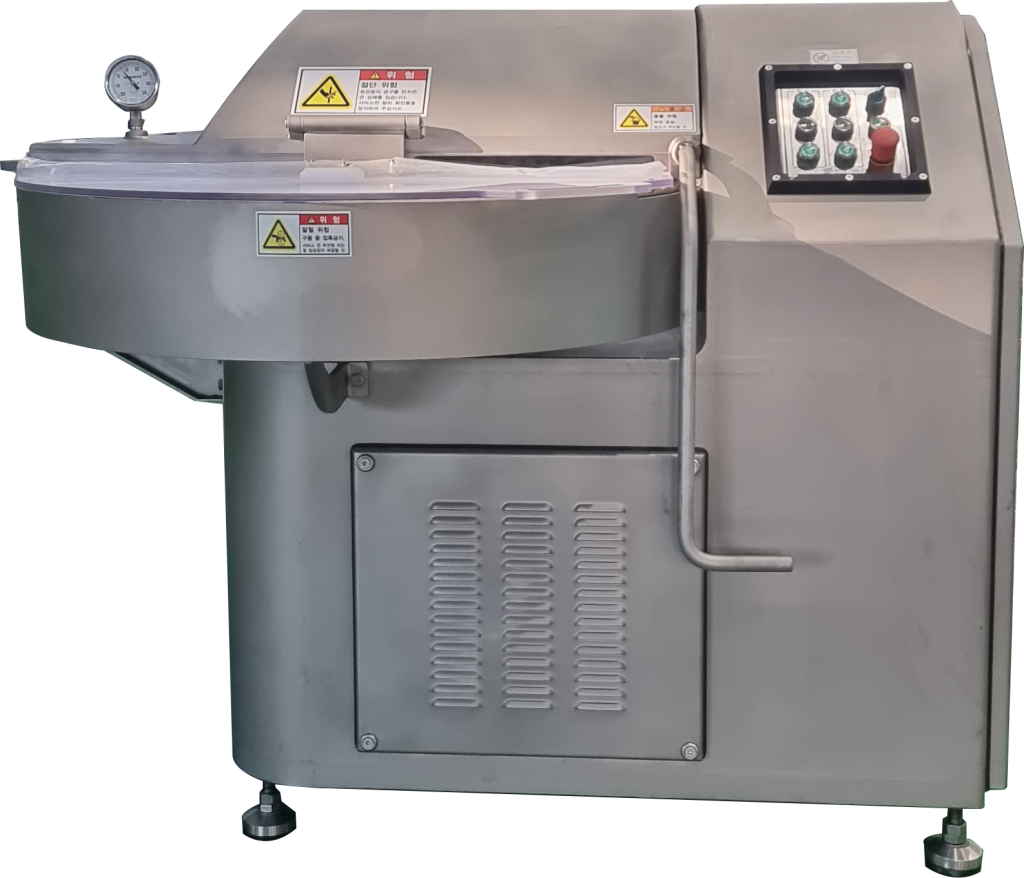

Silent Cutter

Silent Cutter

Feature

Thanks to knives, DSC Series cut and emulsify the product equally
2 types of knife rotation speed & bow rotation speed
Loading option : manually

Technical Specification

MODEL	DSC-40	DSC-60
Capacity (L/Batch)	20~25(L/Batch)	30-36(L/Batch)
Knife Quantity	3	4 or 6
Rotation Speed (Knife)	900 , 1800 RPM	900 , 1800 RPM
Rotation Speed(Bowl)	5, 10 RPM	5, 10 RPM
POWER	3.75Kw	5.5Kw
Dimension	W900 X L1200 X H1051	W1109 X L1400 X H1200

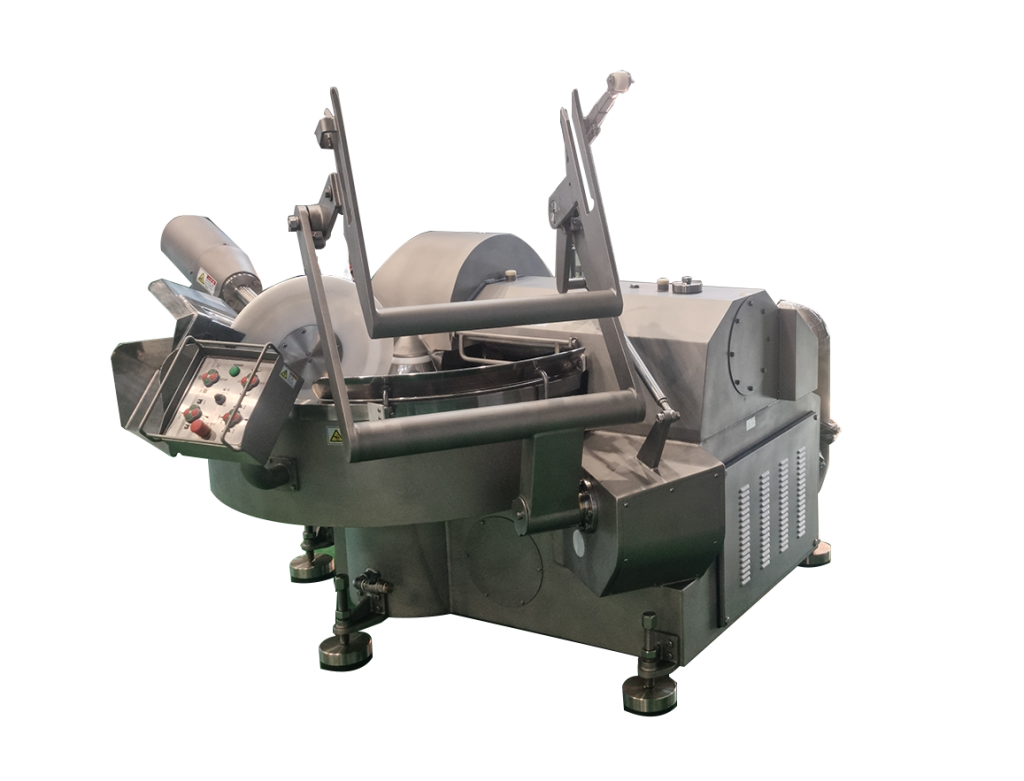

Feature

Thanks to 6 knives, DSC Series cut and emulsify the product equally
2 types of knife rotation speed & bow rotation speed
Included Unloading disc
Included Scraper(370L only)
Included automatically lifter for Euro bin 200L

Technical Specification

MODEL	DSC-100	DSC-200	DSC-370
Capacity (L/Batch)	50~60(L/Batch)	100-120(L/Batch)	200~220(L/Batch)
Knife Quantity	6	6	6 or 8
Rotation Speed (Knife)	700 , 1400 RPM	700 , 1400 RPM	700 , 1400 RPM
Rotation Speed(Bowl)	5, 10 RPM	5, 10 RPM	5, 10 RPM
POWER	25.3Kw	35Kw	53.5Kw
Dimension	W1325 X L1950 X H1015	W2479 X L2930 X H1720	W2560 X L3600 X H1720

Comparable Machine

Mixer

Double axis homogeneously mixes different ingredients
Water-resistant design
Pneumatically discharge tilting for easily transferring filling to wagon or mono-pump

Meat Grinder

Flake and grinder
Frozen only Grinder
Fresh and frozon grinder
